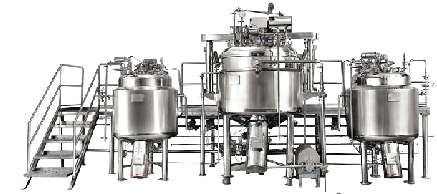

OINTMENT SECTION

Application:

Pharmaceuticals, Cream, Gel, Sterile & Non Sterile Ointments and Biotech Products Cosmetics: Cold Cream Hair Dye Cream, Conditioner, Lotions, Gels, Mascara Make-Up, Shampoo, toothpaste

Design Base:

A Special Pharmaceutical Design enables Application in Biotechnical Process. Material, Surface as well as general design are in keeping with the GMP directives as well as the recommendation of the FDA & USFDA.
Vessel design as per ASME guideline and tailor made design as per users / product Requirements.
All Vessel are per GMP regulations.
Total Plant is deign & Supplied as per CGMP Guideline.

Technical Specification:

Choice of Various type of anchor design.
Homogenizer (Option) - Top Entry, Side Entry, Bottom Entry with Circulation Facility.
Hydraulic Lid Lifting for fast & easy cleaning of top dish & vessel.
Load Cell for Fast & accurate measuring System.
Flexible Product transfer Pipe & Fitting in case of Load Cell & hydraulic Lifting.
VFD for Anchor Agitators to vary the RPM.
VFD for Homogenizer to vary the RPM.
Specially Design drive Assembly.
Total Plant is deign & Supplied as per CGMP Guideline.

Control System:

Manual Control - Temperature Indicator / Timer / Single Phase Protection/Push Button to operate the Complete Plant.
Auto Control - PLC based with touch screen and pass word level to feed the parameters of process for Heating / Cooling / Stirrer Timing / Homogenizer Timing / Stirrer Speed / Homogenizer Speed / Vacuum/Pressure / CIP etc. This choice of package to suit requirement to each product.
HMI (Touch Screen) for visualization of machines of specific process condition and data. SCADA Package (Optional)

Control System:

5kg to 3000kgs.

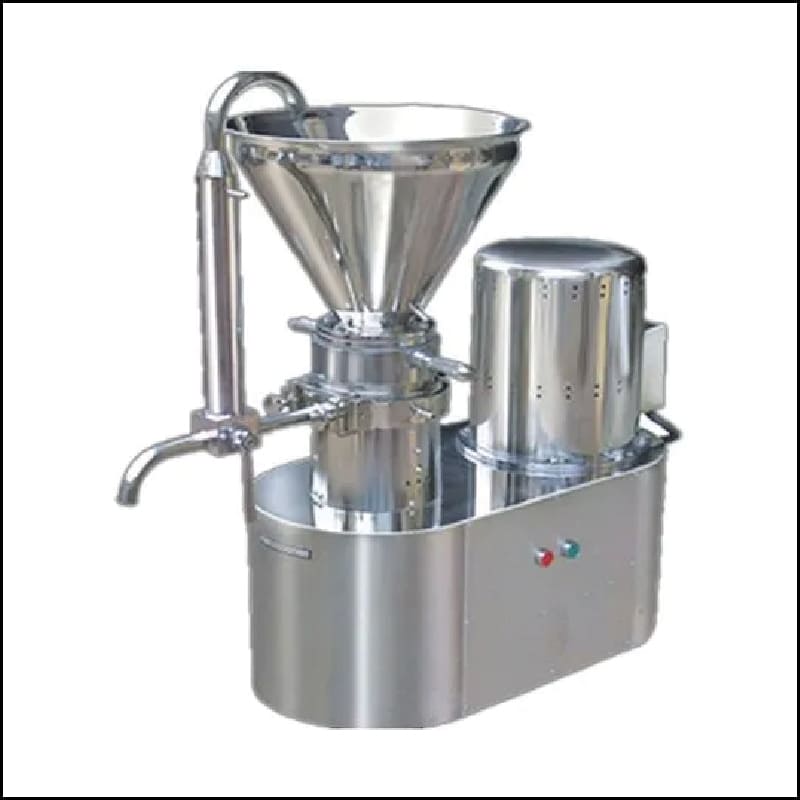

Colloidal Mill

A Colloidal Mill is a machine that is used to reduce the particle size of a solid in suspension in a liquid, or to reduce the droplet size of a liquid suspended in another liquid. This is done by applying high levels of hydraulic shear to the process liquid. It is frequently used to increase the stability of suspensions and emulsions. The Colloidal Mill is used for various applications such as Superfine grinding, homogenizing, emulsifying, dispersing, mixing and extracting of liquids, ointments and highly viscous products in pharmaceutical, cosmetics, suspen- sions & emulsion industries.
