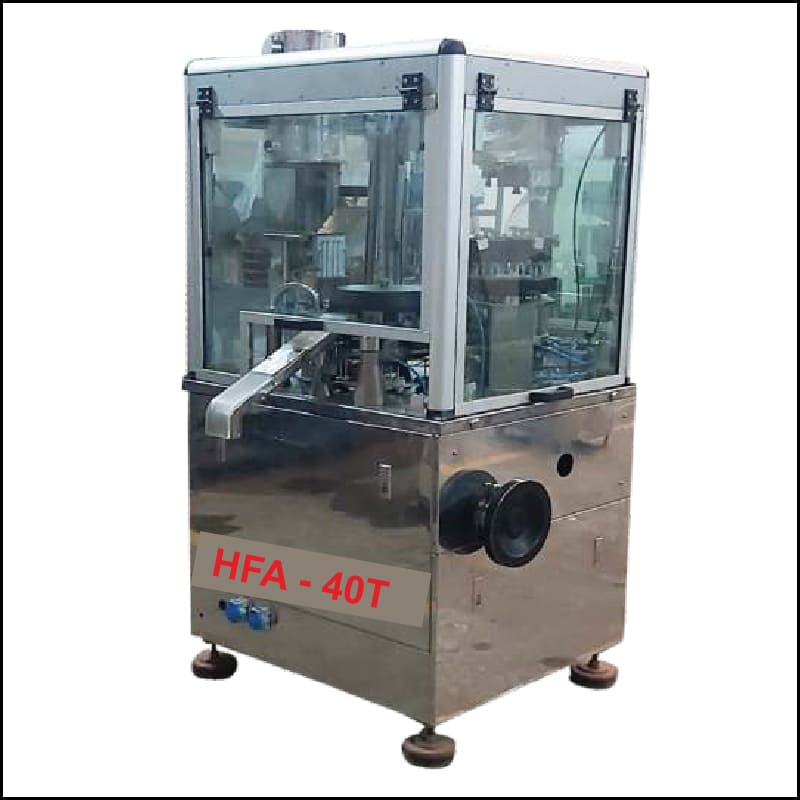

Output :
Up to 40 000 capsules per hour for powder filling.
Up to 40 000 capsules per hour for pellet filling.
Up to 35000 capsules per hour for tablet or combination
Vacuum Required :
900 l/min at 600mm of mercury (capsule separation).
150 l/min at 600mm of mercury (powder bed).
2800 l/min at 500mm of water.
Compressed Air Required : 200LPM at 5-7 kg/cm
Dimensions : 1610mm x 1290mm x 1950mm (LxWxH)
Weight : 1250 kg.
Shipping Dimensions : 2140mm x 1600mm x 2300mm (LxWxH).
Shipping Weight : 1500 kg

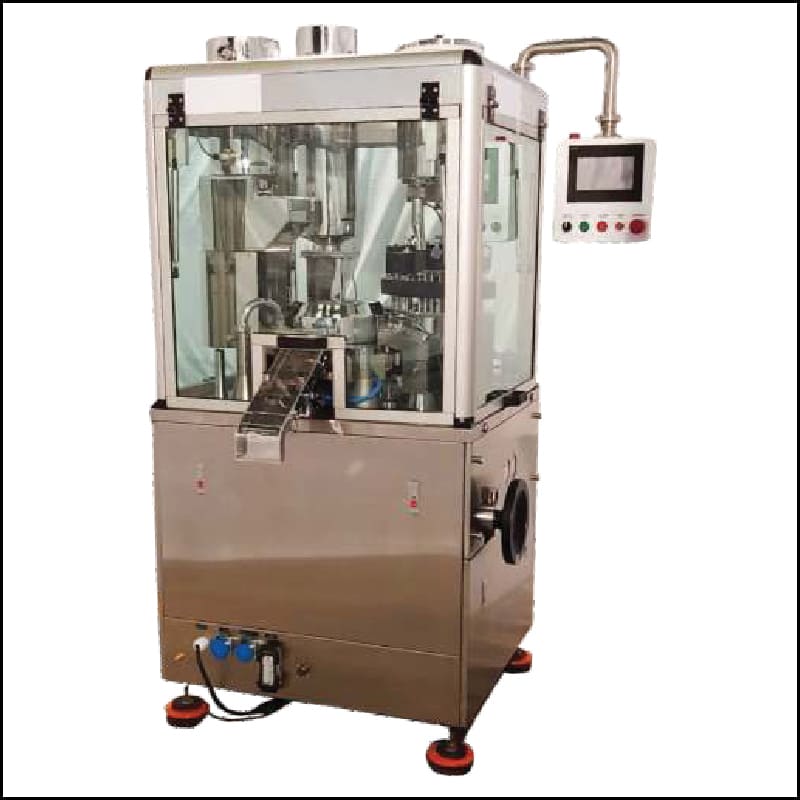

Output :
Up to 90 000 capsules per hour for powder filling.
Up to 80 000 capsules per hour for pellet filling.
Electric Supply : 415V, 3 Phase, +N +E, 50 Hz, A.C.
Main Motor : 1,5 kW (2HP) at 1440 rpm
Vacuum Required :
1000 l/min at 26" of Hg for capsule separation.
2800 l/min at 4" of Hg for cleaning.
Compressed Air : 300 LPM at 6 kg/sq.cm
Dimensions : 1650mm x 1290mm x 2000mm (LxWxH)
Gross Weight : 2350 kg
Shipping Dimensions : 1850mm x 1500mm x 2200mm (LxWxH)
Shipping Weight : 2550 kg

Output :
Up to 90 000 capsules per hour for powder filling.
Up to 80 000 capsules per hour for pellet filling.
Electric Supply : 415V, 3 Phase, +N +E, 50 Hz, A.C.
Main Motor : 1,5 kW (2HP) at 1440 rpm
Vacuum Required :
1000 l/min at 26" of Hg for capsule separation.
2800 l/min at 4" of Hg for cleaning.
Compressed Air : 300 LPM at 6 kg/sq.cm
Dimensions : 1650mm x 1290mm x 2000mm (LxWxH)
Gross Weight : 2350 kg
Shipping Dimensions : 1850mm x 1500mm x 2200mm (LxWxH)
Shipping Weight : 2550 kg

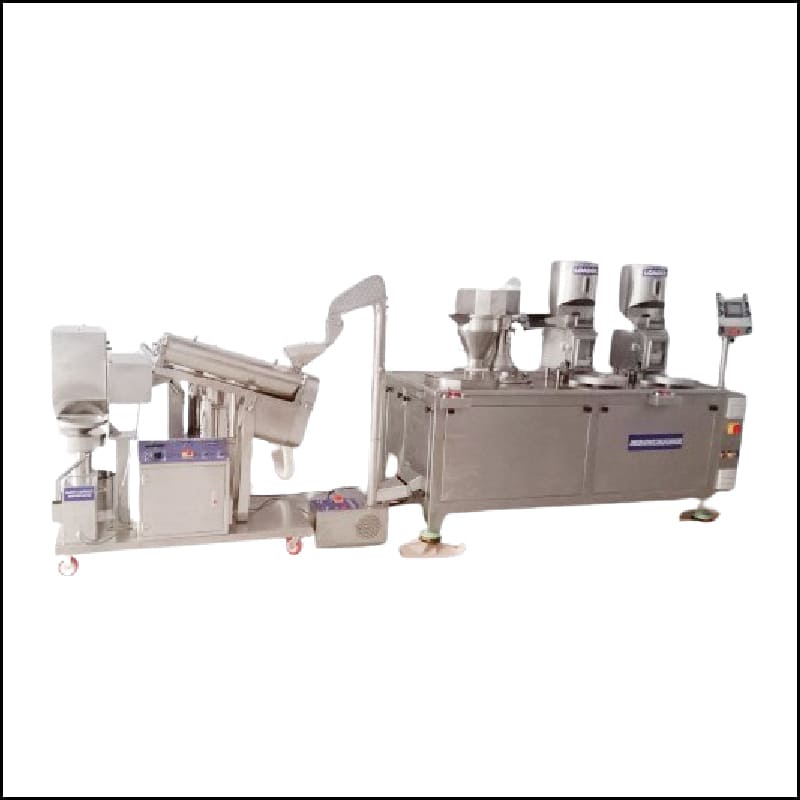

Semi Automatic Capsule Filling Machine is designed for precision manufacturing requirements of modern pharmaceutical procedures. Capsule Filling Machine is suitable to fill size 00 to 5 capsules with powder, granules or pellets. We are having three different models which provide production output ranging from 55,000 capsules per hour to 60,000 capsules per hour. Machine provides high Degree of automation with higher levels of filling weight accuracy. Machine is made as per GMP standards having all Stainless Steel covering.Machine having wide usage in R&D laboratories, Research Institutions, Herbal & Nutraceutical preparations, Unani & Ayurvedic medicines, Pilot batch productions etc.

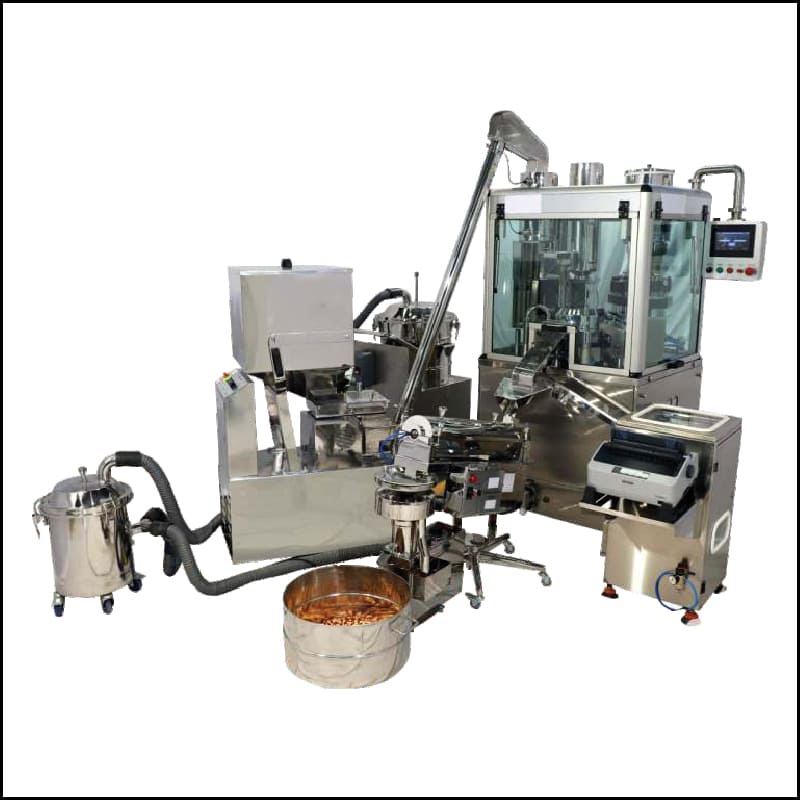

We can provide line equipments naming Capsule Conveying System, Capsule Polishing Machine, Dust Extractor, Damage Capsule Sorter and Empty Capsule Ejector to make complete Semi-Automatic Capsule Filling Line.

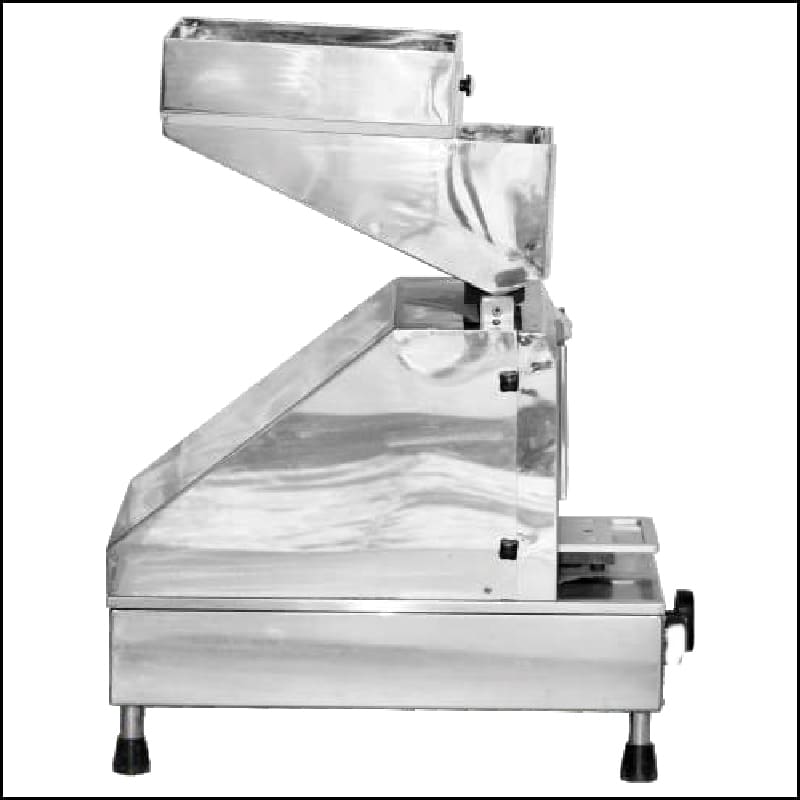

Automatic Capsule Loader is used for loading empty capsules in loading tray of manual capsule filler machine. In this process, empty capsules are placed in loading tray through the magazine automatically with cap up and bodydown. Capsule Loader Machine is useful for various industries. Automatic Capsule Loader is most suitable for medium scale pharmaceutical companies and Ayurvedic Herbal product companies. This capsule loader not only offers easy operation but also saves time & labour . It has a compact design and requires minimum space. The automatic capsule loader delivers high production with high accuracy.

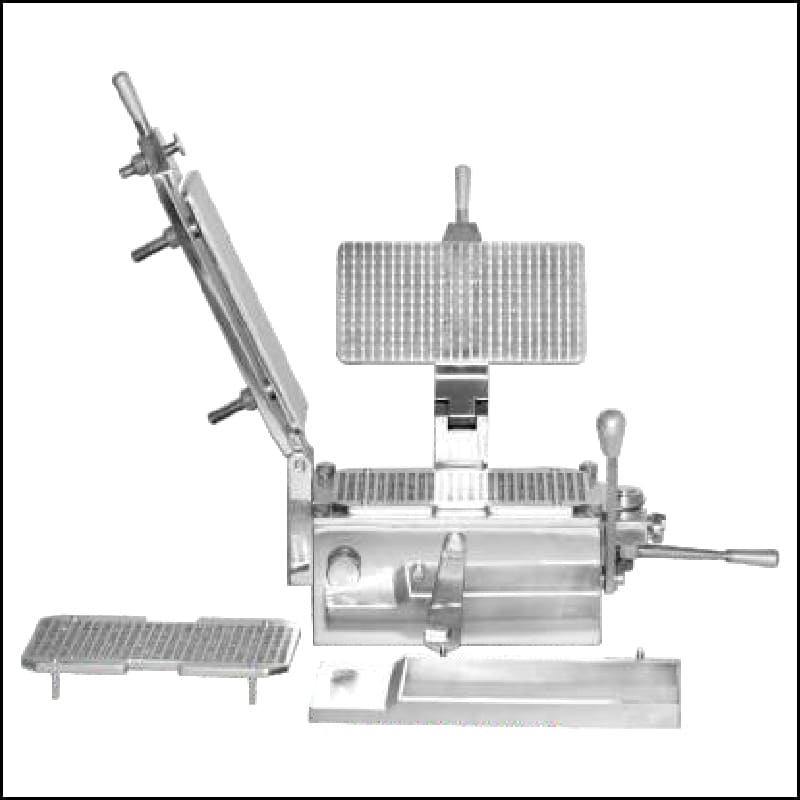

Manual capsule filling machine is a flexible bench top pharmaceutical equipment that boasts of having the capacity to produce 8000 capsules per hour. The machine is hence deemed felicitous for clinical research organizations and special laboratories as they require cost effective manual capsule filler for smaller runs.

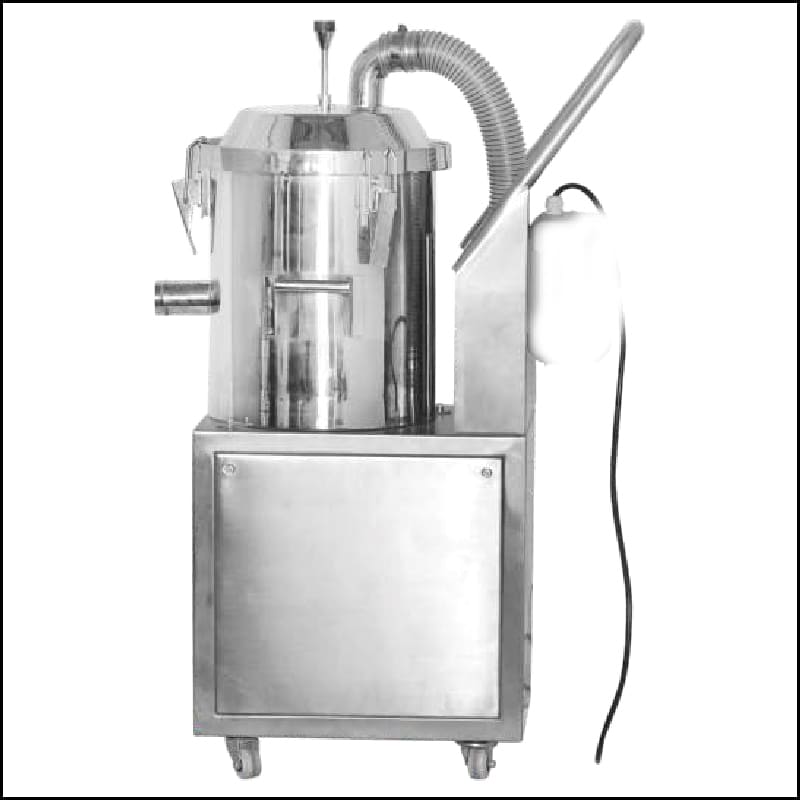

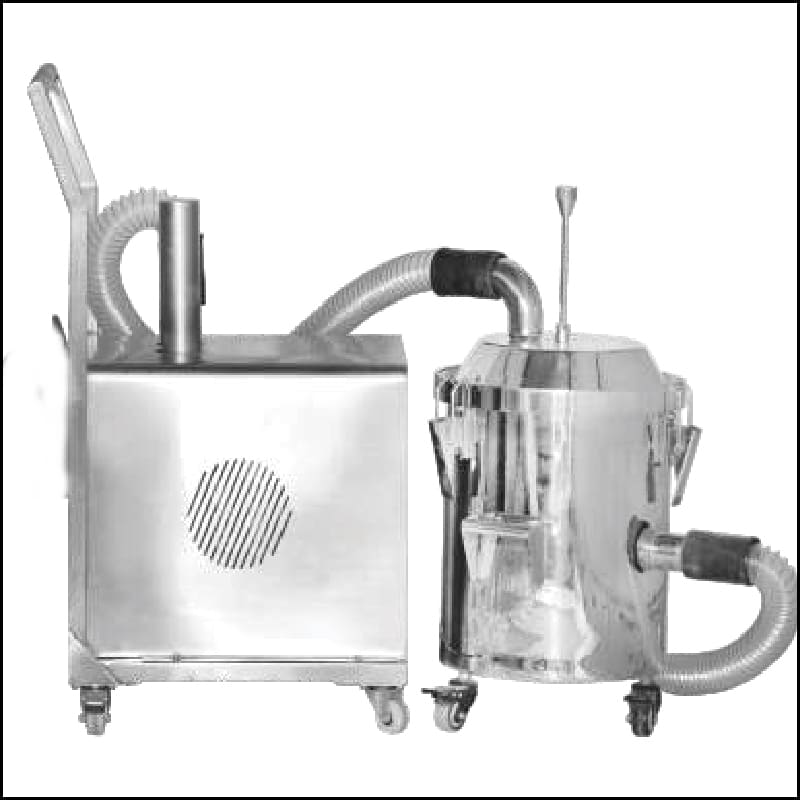

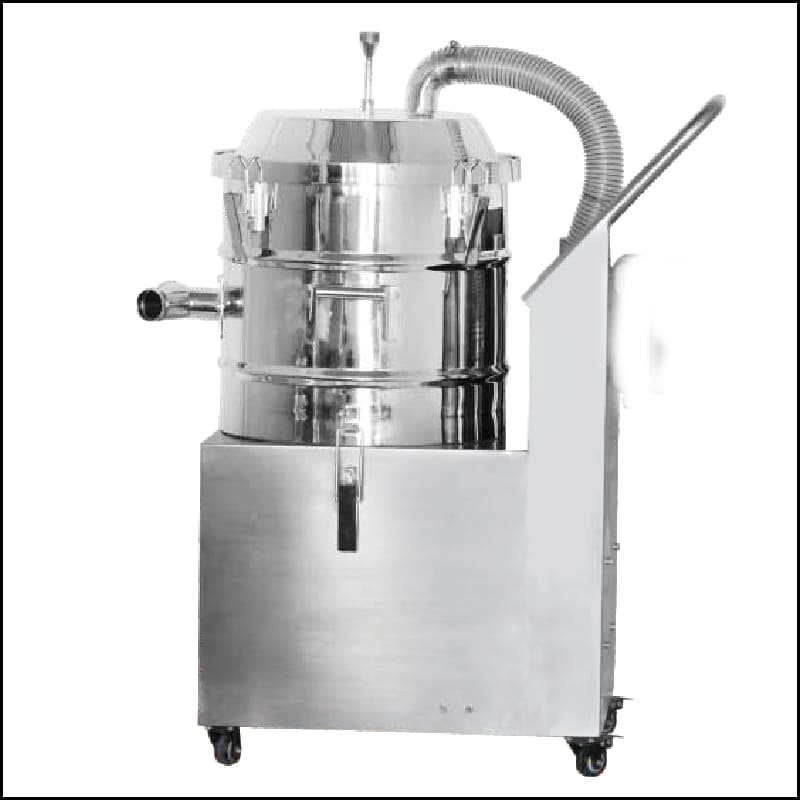

Dust Extractor or dust collector is the equipment uses to gather unwanted powders sticked onto a particular machine. Its major application is in pharmaceutical solid dosage form section where bulk dosing preparations done. In tablet section it is uses to gather extra powder from tablet press machine and tablet counting machine. In capsule section it is uses in capsule filling machines and capsule polishing machines for gathering excess powder . Dust Collector is an auxiliary equipment which is attached to any other equipment to gather excess powder during a particular process. Equipment made from Stainless Steel 316 grade materials with mirror polish from inside and outside. Structure made from 304 grade of stainless steel.

Dust Extractor or dust collector is the equipment uses to gather unwanted powders sticked onto a particular machine. Its major application is in pharmaceutical solid dosage form section where bulk dosing preparations done. In tablet section it is uses to gather extra powder from tablet press machine and tablet counting machine. In capsule section it is uses in capsule filling machines and capsule polishing machines for gathering excess powder . Dust Collector is an auxiliary equipment which is attached to any other equipment to gather excess powder during a particular process. Equipment made from Stainless Steel 316 grade materials with mirror polish from inside and outside. Structure made from 304 grade of stainless steel.

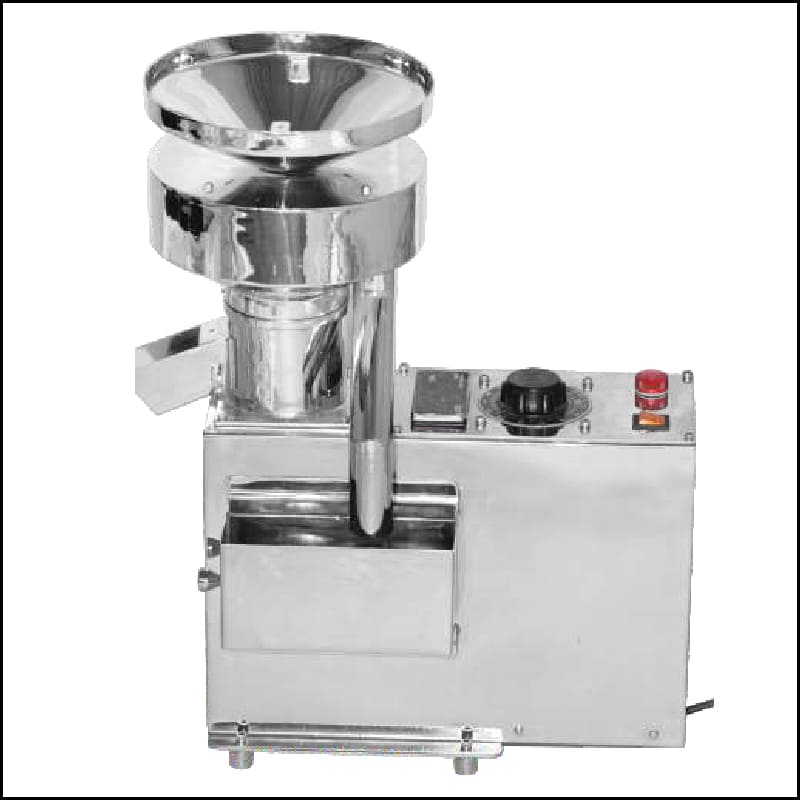

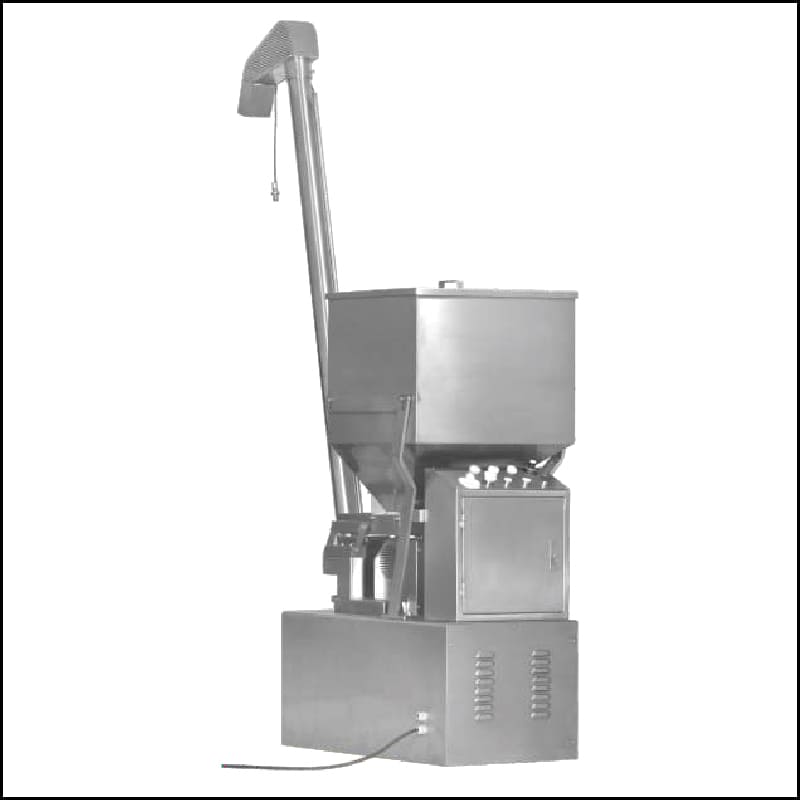

The Empty Capsule Sorter Elevator is used to sort the empty capsule for any damagesand then elevate the good capsule from lower level to the higher level. The Empty Capsule Sorter Elevator is a partof the transferline for the transferfor empty capsule in to the capsule hopper of the Automatic capsule Filling Machine, which is at higherlevel. The machine works on the principle of vibratory sorting and lifting the capsules by airflow. A linervibrator the drilled plate, which sorts the capsule as per the requirement. A continuous stream of air at a highvelocity lifts the capsuleup as soon as they are fed into the blower inlet chute after sorting them properly. The capsules are fed at a lower level and machine conveys them to a higherlevel.

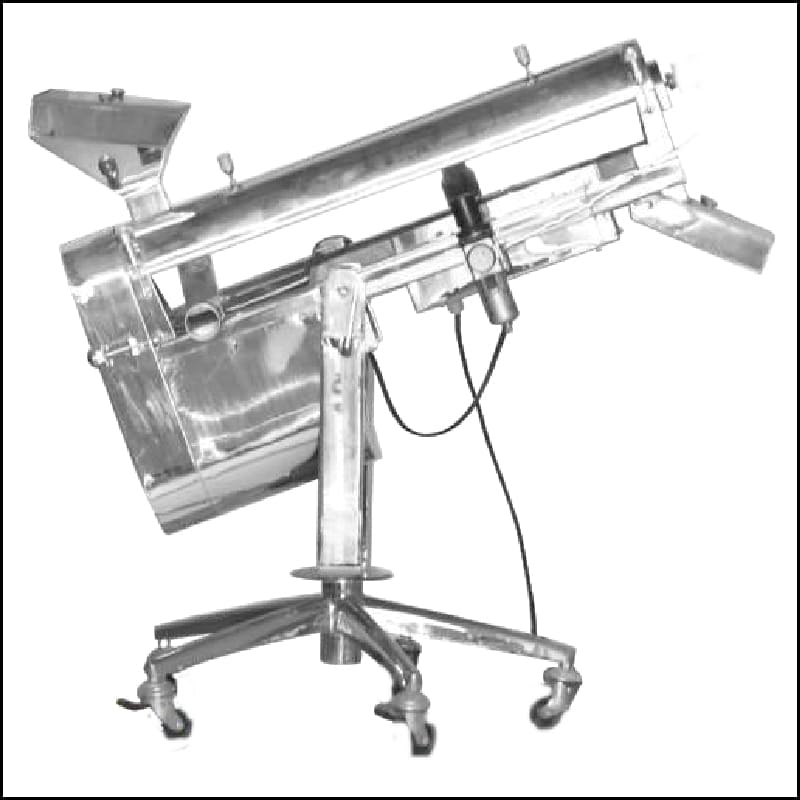

uses the rotating brush principle to clean the capsules on continuous basis. Capsules are fed into the polishing chamber where a rotating spiral brush removes the powder particles sticking from the outer surface of capsules. The polishing chamber is to be connected to a vacuum cleaner to suck the de-dusted powder from the polishing chamber. This helps improving the polishing quality of Capsules.

Empty Capsule Ejector works on the principle of airflow force. Filled capsules will fall straight towards the down level & Empty capsule will eject outside when airflow force is applied on the capsules, it's specially to sort out empty capsules from filled capsules.

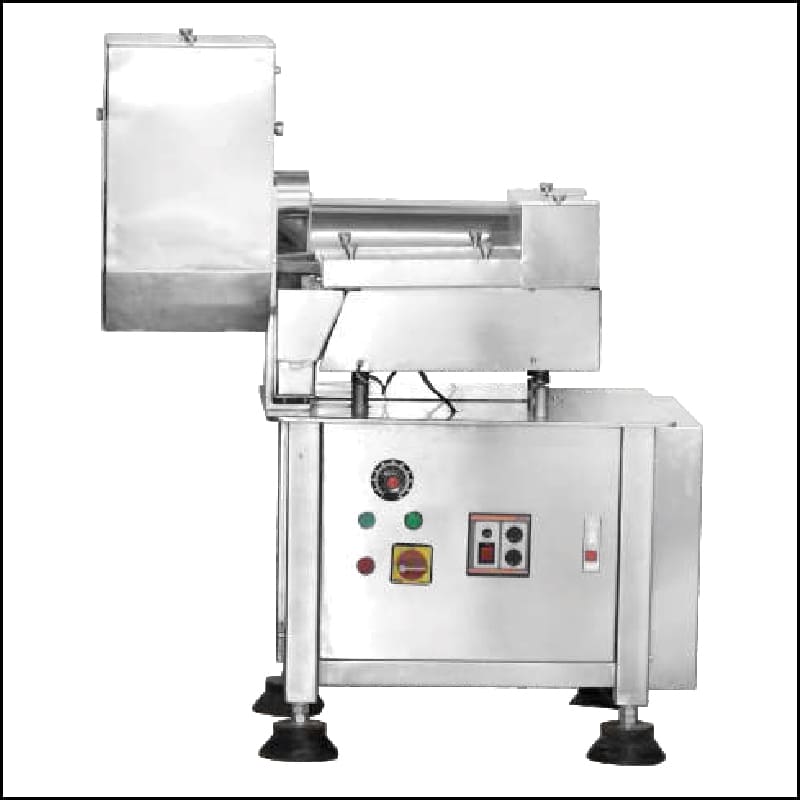

The Mini Capsule Sorter sorts out the separated capsule cap and body shells and other loose product material through a linear sorting plate and vibratory mechanism and ensures that good quality capsules are passed into the Filled capsule sorter drum.

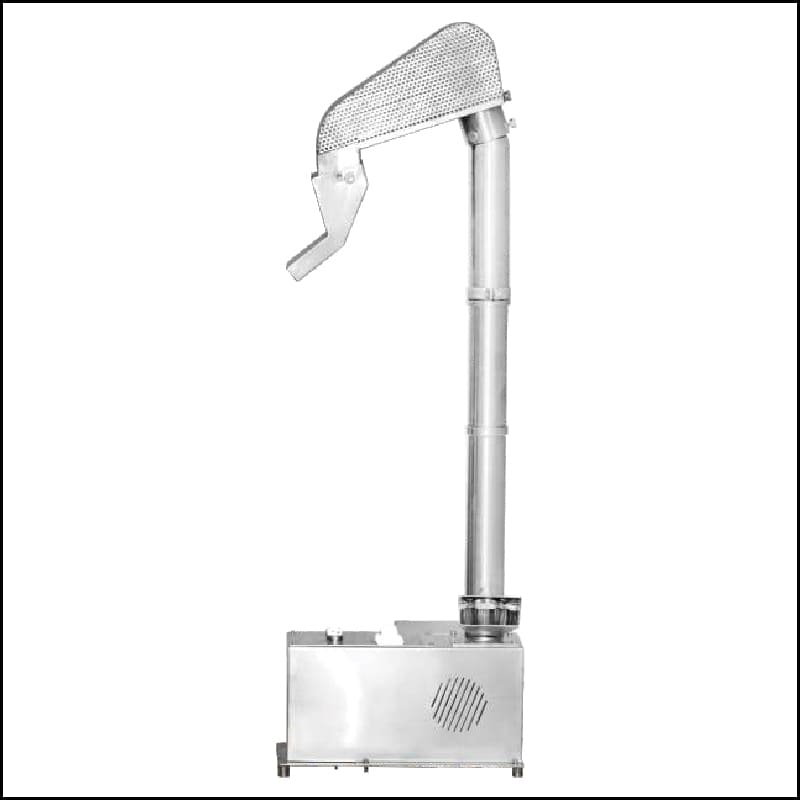

The Filled Capsule Elevator is used to convey filled capsules through the elevator pipe and outlet chute into the hopper of the metal detector. FILLED CAPSULE ELEVATOR Model FCSE-200 The Filled Capsule Elevator is used to convey filled capsules through the elevator pipe and the outlet chute into the hopper of the capsule polishing machine. The FCSE-200 is a high output elevator suitable for elevating from a lower level to a higher level. The unit is extremely useful in fully automatic lines where the output from the exit chute of a filling/ sorting machine, which is at a lower level, is connected to the inlet chute of a polishing machine, which is at a higher level.

Dust Extractor or dust collector is the equipment uses to gather unwanted powders sticked onto a particular machine. Its major application is in pharmaceutical solid dosage form section where bulk dosing preparations done. In tablet section it is uses to gather extra powder from tablet press machine and tablet counting machine. In capsule section it is uses in capsule filling machines and capsule polishing machines for gathering excess powder. Dust Collector is an auxiliary equipment which is attached to any other equipment to gather excess powder during a particular process. Equipment made from Stainless Steel 316 grade materials with mirror polish from inside and outside. Structure made from 304 grade of stainless steel.
